Small Laser Engraving Cutting Machine
Small Laser Engraving Cutting Machine

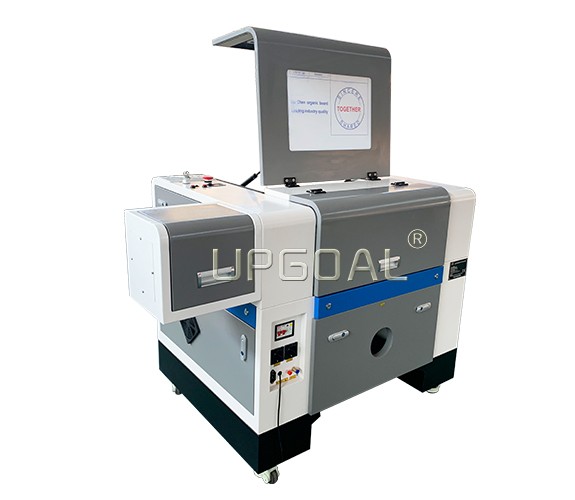

90W 600*400mm Wood MDF Plywood CO2 Laser Engraving Cutting Machine

Brief Introduction:

Model: UG-6040L
600*400mm working area
90W Reci Co2 laser tube
Double working table
Auto lifting table
RuiDa RDC 6445S control
Auto focusing

INQUIRY NOW

Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

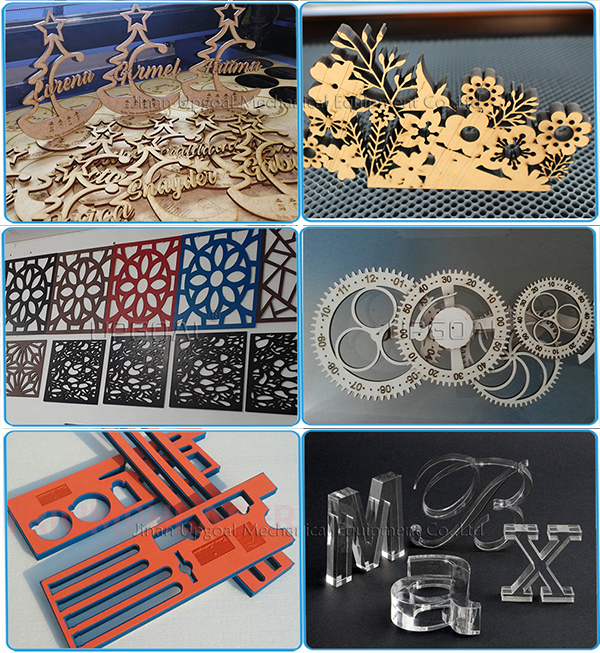

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc.

Materials can Work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.


Features

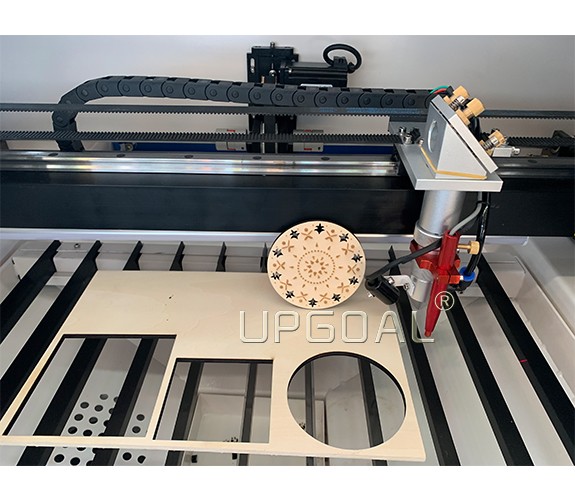

Laser Head  with red dot positioning & auto focusing( pen type)

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

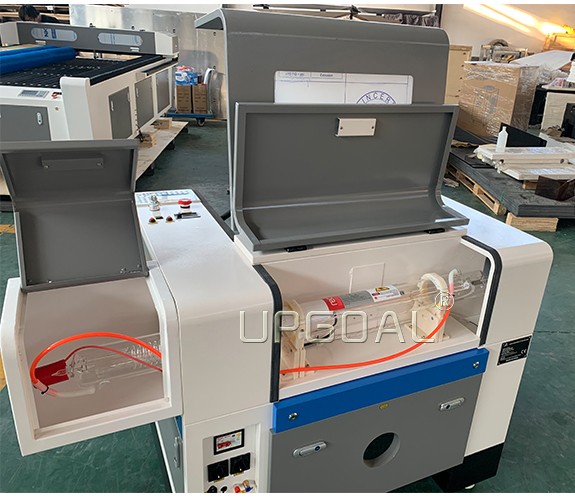

Adopted high quality RECI W2 90W Co2 laser tube,  long working time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality.

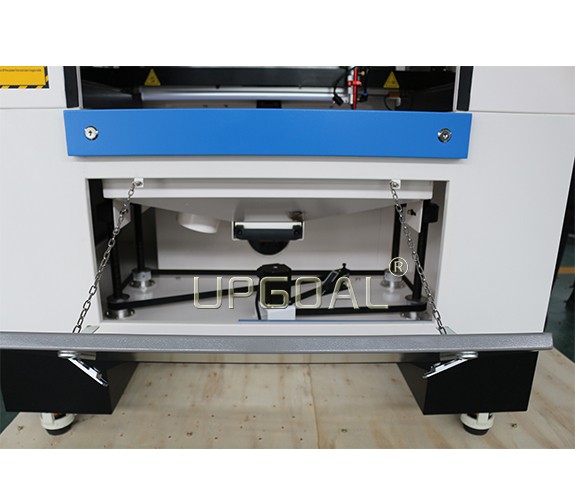

Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 180mm up-down distance.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

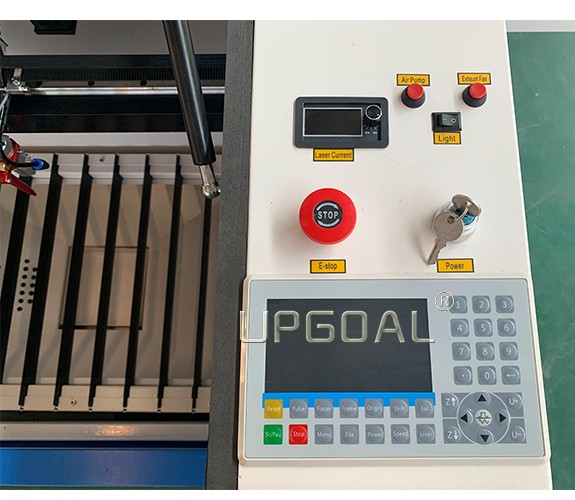

Advanced USB port RuiDa RDC6445S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5000(Teyu S&A), ensuring the laser tube long time continus working



Effective working area

600*400mm

Laser Type

Co2 sealed-off laser tube

Laser tube power

W2 series, Reci, Beijing

(Rated power: 90W, max. Power: 100W)

Working table

Honey comb & knife strip, double working table

Lifting table

Automatic up and down, 180mm

Driver mode

3 phases stepper motor and Driver, Leadshine brand

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

Belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

Ruida RDC6445S(EC)

Control software

RDWorks V8

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller CW-5000 cooling(Teyu S&A)

Water protection system

Yes

Focus

Auto focus, pen type sensor

Blow-off system

Air blower and air pump

Biggest scanning accuracy

2500DPI

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLTDSTDXFBMP, DWGAILAS,etc

Voltage

AC 220V/110V, 50/60Hz, single phase

Certificate

CE/FDA
